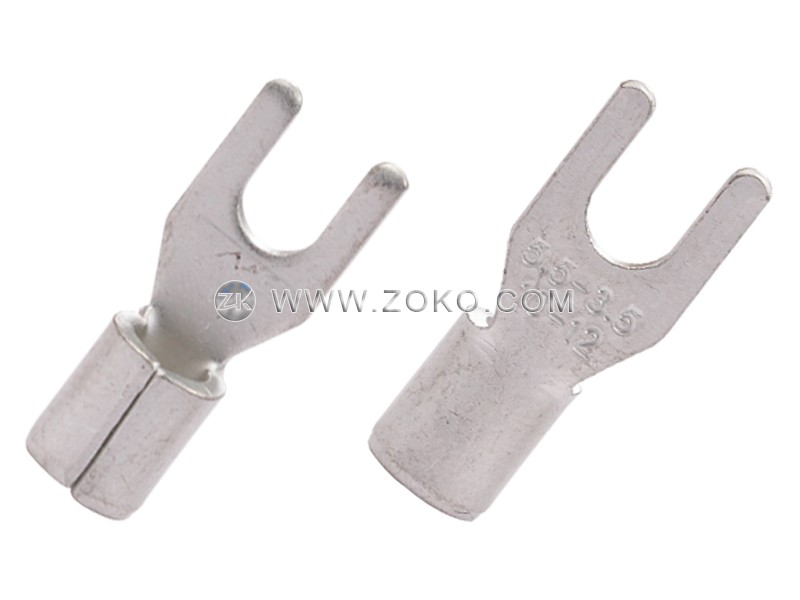

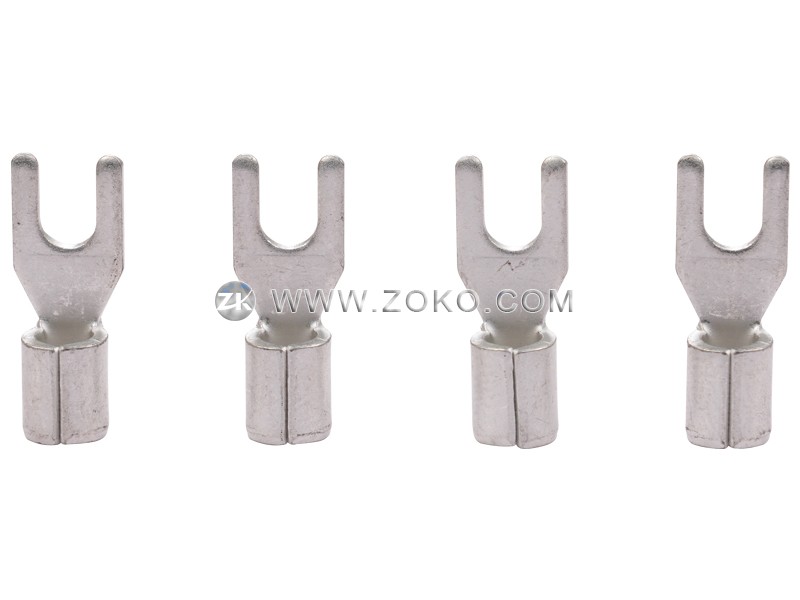

Non-Insulated Spade Terminal

Non-Insulated Spade Terminal

Non-Insulated Spade Terminal

Non-Insulated Spade Terminal

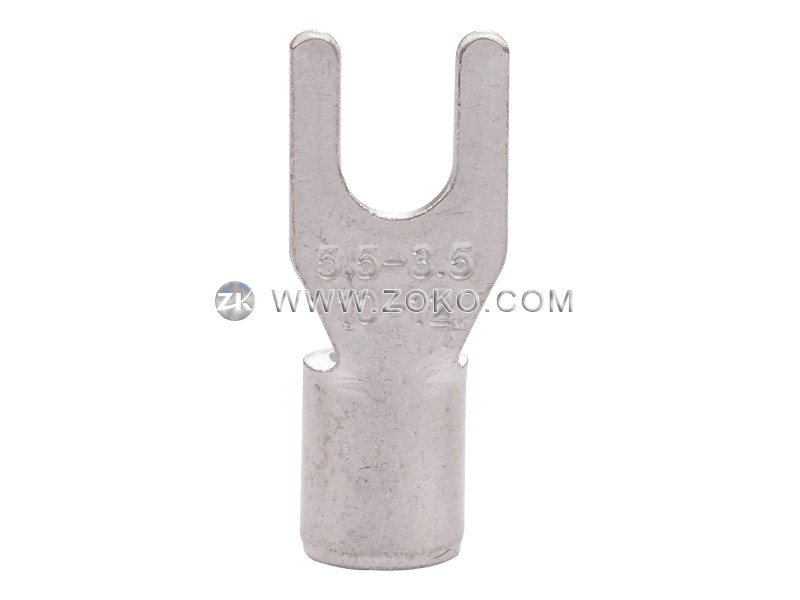

Model：SNB5.5-3.5
Brand：KINGSING
Voltage：220V (Can be customized)
Function：
Price：

Online Inquiry

Item No.	Cable Size A.W.G mm²	Thickness (mm)	Max Current	USA Screw	Screw Dia.d2(mm)	Dimension(mm)
						W	L	F	E	DФ	dФ
SNB 0.5-3	0.2-0.75(24~18)	0.5	10A	#4	3.2	5.7	14.2	5.1	4.3	2.3	1.7
SNB 0.5-4				#8	4.3	6.4	14.2	5.3

Item No.	Cable Size A.W.G mm²	Thickness (mm)	Max Current	USA Screw	Screw Dia.d2(mm)	Dimension(mm)
Item No.	Cable Size A.W.G mm²	Thickness (mm)	Max Current	USA Screw	Screw Dia.d2(mm)	W	L	F	E	DФ	dФ
SNB 1.25-3	0.5-1.5(22~16)	0.75	19A	#4	3.2	5.7	16.0	6.5	4.8	3.4	1.7
SNB 1.25-3.5S				#6	3.7	5.7	16.0	6.5
SNB 1.25-3.5L				#6	3.7	6.4	16.0	6.5
SNB 1.25-4S				#8	4.3	6.4	16.0	6.5
SNB1.25-4M				#8	4.3	7.2	16.0	6.5
SNB 1.25-4L				#8	4.3	8.1	16.0	6.5
SNB 1.25-5S				#10	5.3	8.1	16.0	6.5
SNB 1.25-5L				#10	5.3	9.5	16.0	6.5
SNB 1.25-6S				1/4	6.4	9.5	16.0	6.5
SNB 1.25-6L				1/4	6.4	12.0	22.0	11.0

Item No.	Cable Size A.W.G mm²	Thickness (mm)	Max Current	USA Screw	Screw Dia.d2(mm)	Dimension(mm)
Item No.	Cable Size A.W.G mm²	Thickness (mm)	Max Current	USA Screw	Screw Dia.d2(mm)	W	L	F	E	DФ	dФ
SNB 2-3	1.5-2.5(16~14)	0.8	27A	#4	3.2	5.7	16.0	6.5	4.8	4.1	2.3
SNB 2-3.5S				#6	3.7	5.7	16.0	6.5
SNB 2-3.5L				#6	3.7	6.2	16.0	6.5
SNB 2-4S				#8	4.3	6.4	16.0	6.5
SNB2-4M				#8	4.3	7.2	16.0	6.5
SNB 2-4L				#8	4.3	8.1	16.0	6.5
SNB 2-5S				#10	5.3	8.1	16.0	6.5
SNB 2-5L				#10	5.3	9.5	16.0	6.5
SNB 2-6S				1/4	6.4	9.5	16.0	6.5
SNB 2-6L				1/4	6.4	12.0	22.0	11.0

Item No.	Cable Size A.W.G mm²	Thickness (mm)	Max Current	USA Screw	Screw Dia.d2(mm)	Dimension(mm)
Item No.	Cable Size A.W.G mm²	Thickness (mm)	Max Current	USA Screw	Screw Dia.d2(mm)	W	L	F	E	DФ	dФ
SNB 3.5-3	2.5-4(14~12)	1.0	37A	#4	3.2	5.7	18.3	7.0	6.0	5.0	3.0
SNB 3.5-4S				#8	4.3	7.2	18.3	7.0
SNB 3.5-4				#8	4.3	8.0	18.3	7.0
SNB 3.5-5				#10	5.3	8.0	18.3	7.0
SNB3.5-6				1/4	6.4	12.0	21.5	12.1

Item No.	Cable Size A.W.G mm²	Thickness (mm)	Max Current	USA Screw	Screw Dia.d2(mm)	Dimension(mm)
Item No.	Cable Size A.W.G mm²	Thickness (mm)	Max Current	USA Screw	Screw Dia.d2(mm)	W	L	F	E	DФ	dФ
SNB5.5-3.5	4-6(12~10)	1.0	48A	#6	3.7	7.2	18.2	7.5	6.8	5.6	3.4
SNB 5.5-4S				#8	4.3	8.3	19.5	7.5
SNB 5.5-4L				#8	4.3	9.0	19.5	7.5
SNB 5.5-5				#10	5.3	9.0	19.5	7.5
SNB5.5-6S				1/4	6.4	9.0	19.5	7.5
SNB5.5-6L				1/4	6.4	12.0	25.5	12.0
SNB5.5-8				5/16	8.4	14.0	24.5	11.5

Teriminal Body:Copper

Plating:Tin
