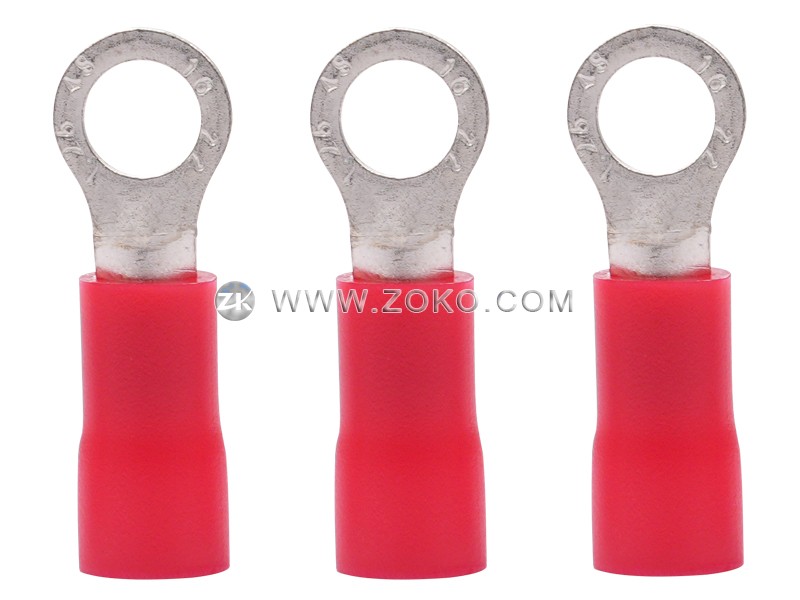

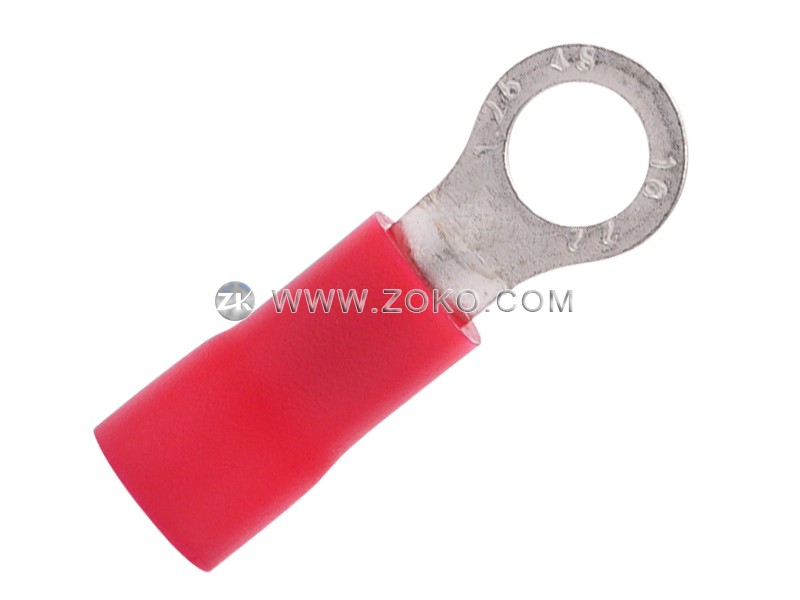

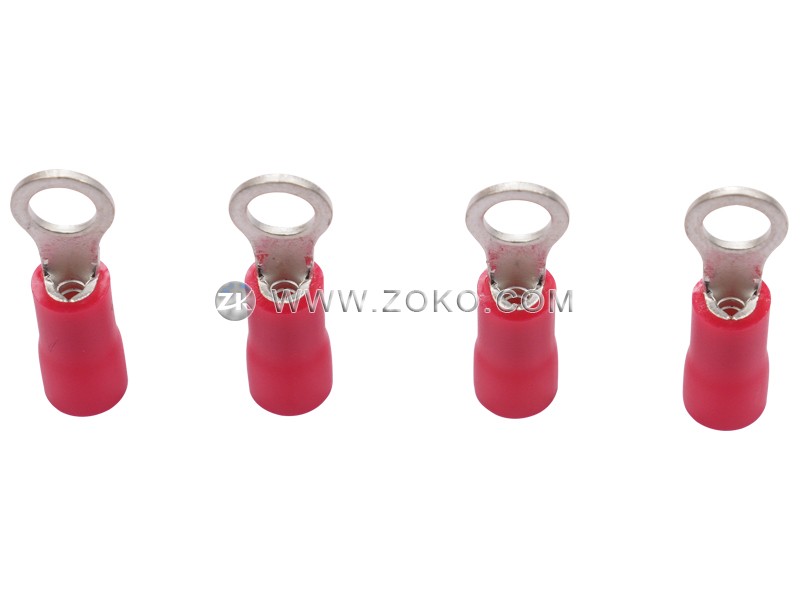

Vinyl-Insulated Ring Terminal

Vinyl-Insulated Ring Terminal

Vinyl-Insulated Ring Terminal

Vinyl-Insulated Ring Terminal

Model：RV1.25-4S
Brand：KINGSING
Voltage：220V (Can be customized)
Function：
Price：

Online Inquiry

Item No.	Cable Size A.W.G mm2	Thickness (mm)	Max Current	USA Screw	Screw Dia.d2(mm)	Dimension(mm)					Color
						W	L	F	E	DФ
RV 0.5-3	0.25-0.75(24~18)	0.5	10A	#4	3.2	5.7	18.3	4.9	10.0	2.7	Yellow
RV 0.5-3.5S				#6	3.7	5.7	18.3	4.9
RV 0.5-3.5M				#6	3.7	6.6	19.9	6.3
RV 0.5-4				#8	4.3	6.6	19.9	6.3

Item No.	Cable Size A.W.G mm2	Thickness (mm)	Max Current	USA Screw	Screw Dia.d2(mm)	Dimension(mm)					Color
Item No.	Cable Size A.W.G mm2	Thickness (mm)	Max Current	USA Screw	Screw Dia.d2(mm)	W	L	F	E	DФ	Color
RV 1.25-3	0.5-1.5(22~16)	0.75	19A	#4	3.2	5.7	17.8	4.9	10.7	4.2	Red
RV 1.25-3.5S				#6	3.7	5.7	17.8	4.9
RV 1.25-3.5M				#6	3.7	6.6	20.1	6.3
RV 1.25-3.5L				#6	3.7	8.0	21.5	7.0
RV 1.25-4S				#8	4.3	6.6	20.1	6.3
RV 1.25-4L				#8	4.3	8.0	21.5	7.0
RV 1.25-5S				#10	5.3	8.0	21.5	7.0
RV 1.25-5L				#10	5.3	9.8	23.0	8.2
RV 1.25-6S				1/4	6.4	9.8	23.0	8.2
RV 1.25-6L				1/4	6.4	11.6	27.5	11.1
RV 1.25-8				5/16	8.4	11.6	27.5	11.1
RV 1.25-10				3/8	10.5	13.6	31.6	13.9
RV 1.25-12				1/2	13.0	19.2	36.0	16.5

Item No.	Cable Size A.W.G mm2	Thickness (mm)	Max Current	USA Screw	Screw Dia.d2(mm)	Dimension(mm)					Color
Item No.	Cable Size A.W.G mm2	Thickness (mm)	Max Current	USA Screw	Screw Dia.d2(mm)	W	L	F	E	DФ	Color
RV 2-3	1.5-2.5(16~14)	0.8	27A	#4	3.2	6.6	17.8	4.3	10.7	4.9	Blue
RV 2-3.5S				#6	3.7	6.6	17.8	4.3
RV 2-3.5M				#6	3.7	6.6	20.0	6.5
RV 2-3.5L				#6	3.7	8.5	22.5	7.7
RV2-4S				#8	4.3	6.6	20.0	6.5
RV 2-4L				#8	4.3	8.5	22.5	7.7
RV 2-5S				#10	5.3	8.5	22.5	7.7
RV 2-5L				#10	5.3	9.5	22.5	7.2
RV 2-6S				1/4	6.4	9.5	22.5	7.2
RV 2-6L				1/4	6.4	12.0	27.6	11.0
RV 2-8				5/16	8.4	12.0	27.6	11.0
RV 2-10				3/8	10.5	14.6	31.2	13.9
RV 2-12				1/2	13.0	19.2	36.5	16.5

Item No.	Cable Size A.W.G mm2	Thickness (mm)	Max Current	USA Screw	Screw Dia.d2(mm)	Dimension(mm)					Color
Item No.	Cable Size A.W.G mm2	Thickness (mm)	Max Current	USA Screw	Screw Dia.d2(mm)	W	L	F	E	DФ	Color
RV 3.5-4	2.5-4.0(14~12)	1.0	37A	#8	4.3	8.0	24.5	7.7	13.8	5.8	Black
RV 3.5-5S				#10	5.3	8.0	24.5	7.7
RV 3.5-5L				#10	5.3	12.0	27.9	8.6
RV 3.5-6				1/4	6.4	12.0	27.9	8.6
RV 3.5-8				5/16	8.4	15.0	34	14
RV 3.5-10				3/8	10.5	15.0	34	14

Item No.	Cable Size A.W.G mm2	Thickness (mm)	Max Current	USA Screw	Screw Dia.d2(mm)	Dimension(mm)					Color
Item No.	Cable Size A.W.G mm2	Thickness (mm)	Max Current	USA Screw	Screw Dia.d2(mm)	W	L	F	E	DФ	Color
RV 5.5-3	4.0-6.0(12~10)	1.0	48A	#4	3.2	7.2	22.7	5.9	14.0	6.5	Yellow
RV 5.5-3.5S				#6	3.7	7.2	22.7	5.9
RV 5.5-4S				#8	4.3	7.2	22.7	5.9
RV 5.5-4L				#8	4.3	9.5	26.3	8.3
RV 5.5-5				#10	5.3	9.5	26.3	8.3
RV 5.5-6				1/4	6.4	12.0	30.0	11.0
RV 5.5-8				5/16	8.4	15.0	34.7	13.7
RV 5.5-10				3/8	10.5	15.0	34.7	13.7
RV 5.5-12				1/2	13.0	19.2	39.0	16.0

Item No.	Cable Size A.W.G mm2	Thickness (mm)	Max Current	USA Screw	Screw Dia.d2(mm)	Dimension(mm)					Color
Item No.	Cable Size A.W.G mm2	Thickness (mm)	Max Current	USA Screw	Screw Dia.d2(mm)	W	L	F	E	DФ	Color
RV 8-4	6.0-10(8)	1.2	62A	#8	4.3	8.8	32.3	9.2	17.0	8.0	Red
RV 8-5S				#10	5.3	8.8	32.3	9.2
RV 8-5M				#10	5.3	12.0	32.3	9.2
RV 8-5L				#10	5.3	15.0	38.3	13.8
RV 8-6S				1/4	6.4	12.0	32.3	9.8
RV 8-6L				1/4	6.4	15.0	38.3	13.8
RV 8-8				5/16	8.4	15.0	38.3	13.8
RV 8-10				3/8	10.5	15.0	38.3	13.8
RV 8-12				1/2	13.0	22.0	48.0	15.0

Terminal Body:Copper

Insulation:Vinyl

Plating:Tin
